產(chǎn)品描述

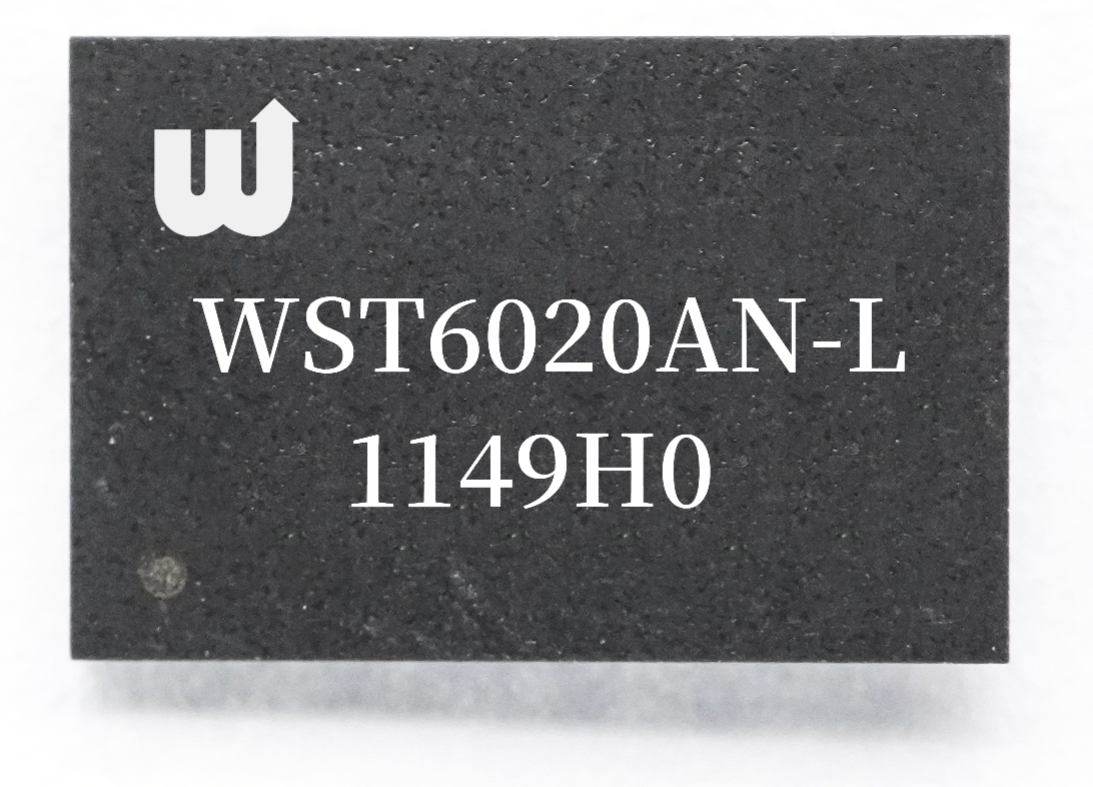

Smart High-Side Power Switch Single Channel, 20mΩ,DFN9x6-14L , AEC-Q100 qualified

主要特點(diǎn)

Basic Features

• PRO-SILT ISO 26262-ready for supporting the integrator in evaluation of hardwareelement according to ISO 26262:2018 Clause 8-13


• Single channel device

• Very low stand-by current

• 3.3 V and 5 V compatible logic inputs

• Optimized electromagnetic compatibility

• Very low eleclromagnetic susceptibility

• User adjustable curent limitation

Diagnostic Functions

• Proportional load current sense

• High curent sense precision for wide range currents

• Off-state open load detection

• OUT short to VS detection

• Overioad and short to ground latch-off

• Theral shutdown latch -off

• Very low current sense leakage

Protection Functions

• Undervoltage shutdown

• Overvoltage ciamp

• Load curent limitation

• Self limiting of fast themal transients

• Protection against loss of ground and loss of VS

• Themal shutdown

規(guī)格書
